View larger
Images are for illustrative purposes only. Please refer to data sheet for details

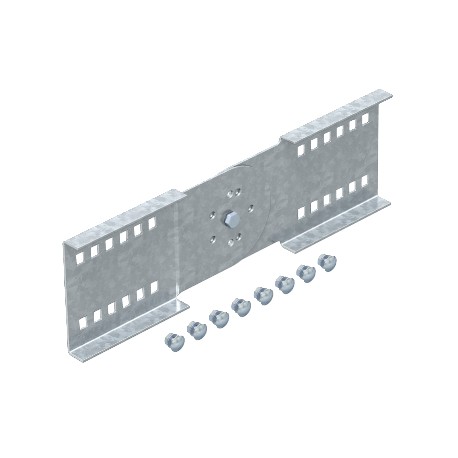

WRGV 110 FS 6091318 OBO BETTERMANN Adjustable connector for wide span system 110, 110x380, Strip-galvanised,..
WRGV 110 FS
6091318
OBO BETTERMANN
2 Pcs.
Adjustable connector for wide span system 110, 110x380, Strip-galvanised, DIN EN 10147, Steel, St
Adjustable connector FS. Adjustable connector for wide span cable trays and ladders with a side height of 110 mm.
Cables > Connector for cable support system
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,85 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 110x380 |
| Height | 110 mm |
| Length | 380 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 2,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 110 mm |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Version for | Straight connector |
| Width | 20 mm |
