View larger
Images are for illustrative purposes only. Please refer to data sheet for details

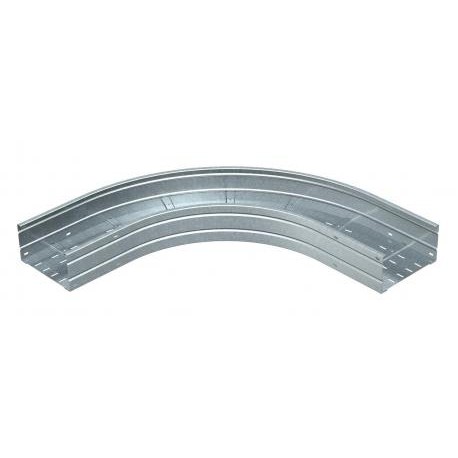

WRB 90 166 FT 6098746 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x600, Hot-dip galvanised, DIN..
WRB 90 166 FT
6098746
OBO BETTERMANN
1 Pcs.
90° bend for wide span cable tray 160, 160x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
90° bend 160 FT. 90° bend, horizontal, for all wide span cable trays of 160 mm side height.
Cables > Bend for cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 85,3874 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x600 |
| Dimension B | 600 mm |
| Dimension R | 500 mm |
| Height | 160 mm |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | yes |
| Width | 600 mm |
