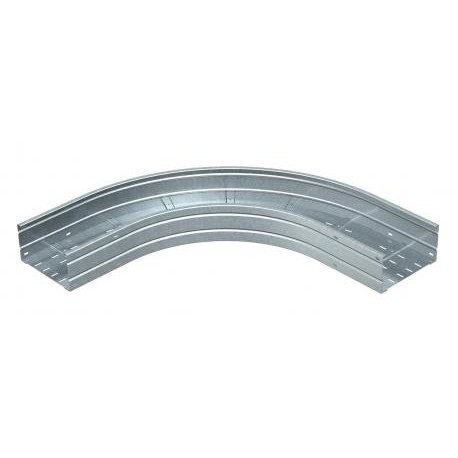

OBO BETTERMANN WRB 90 166 FS WRB 90 166 FS 6098719 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x600, Strip-galvanised, DIN E.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRB 90 166 FS 6098719 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x600, Strip-galvanised, DIN E..

WRB 90 166 FS

6098719

OBO BETTERMANN

1 Pcs.

90° bend for wide span cable tray 160, 160x600, Strip-galvanised, DIN EN 10147, Steel, St 90° bend 160 FS. 90° bend, horizontal, for all wide span cable trays of 160 mm side height.

Cables > Bend for cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann WRB 90 166 FS 90° bend for wide span cable tray is engineered for horizontal directional routing in heavy-duty industrial infrastructures. Wide span systems facilitate long support intervals, significantly reducing installation complexity across expansive facility networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Horizontal
  • CO2 Footprint (GWP) Cradle-to-Gate: 94,1484 kg CO2e / 1 Piece
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 160x600
  • Dimension B: 600 mm
  • Height: 160 mm
  • Material: Steel
  • Mounting perforation in base: yes
  • Plate thickness: 2 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Surface: Strip galvanized
  • Type of connector, cable support system: Screwed
  • Wide-span version: yes

More info

▲
Bend (angle)90°
Change of directionHorizontal
CO2 Footprint (GWP) Cradle-to-Gate94,1484 kg CO2e / 1 Piece
Colourzinc
Connector versionWithout connectors
Dimension160x600
Dimension B600 mm
Height160 mm
MaterialSteel
Mounting perforation in baseyes
Plate thickness2 mm
Rustproof steel, pickledno
Side perforationno
SurfaceStrip galvanized
Type of connector, cable support systemScrewed
Wide-span versionyes
Width600 mm
