View larger

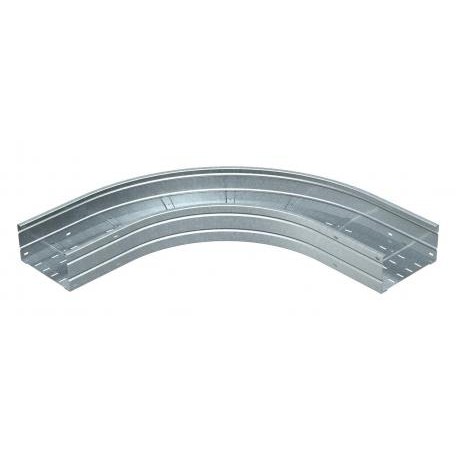

WRB 90 165 FT 6098742 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x500, Hot-dip galvanised, DIN..
WRB 90 165 FT
6098742
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy-duty wire containment, an Obo Bettermann WRB 90 165 FT 90° bend for wide span cable tray 160 safely guides extensive cable runs around horizontal corners. Wide-span tray systems support industrial infrastructure demands.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Horizontal
- CO2 Footprint (GWP) Cradle-to-Gate: 63,4665 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 160x500
- Dimension B: 500 mm
- Dimension R: 500 mm
- Height: 160 mm
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Surface: Hot-dip galvanised
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 63,4665 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x500 |
| Dimension B | 500 mm |
| Dimension R | 500 mm |
| Height | 160 mm |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | yes |
| Width | 500 mm |
