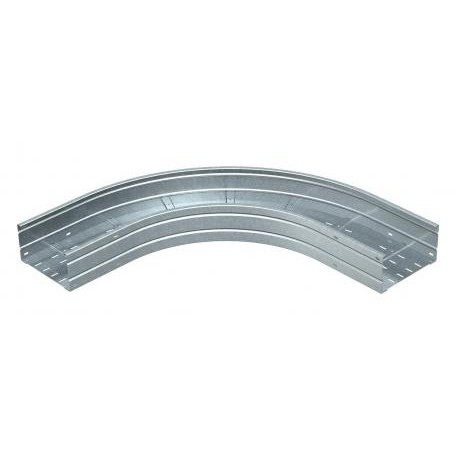

WRB 90 165 FS 6098715 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x500, Strip-galvanised, DIN E..
WRB 90 165 FS
6098715
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann WRB 90 165 FS 90° bend for wide span cable tray 160 facilitates smooth horizontal transitions within heavy-duty wire routing networks. Network designers rely on these fittings to maintain proper cable bend radii and structural integrity throughout complex industrial installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Horizontal
- CO2 Footprint (GWP) Cradle-to-Gate: 68,6073 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 160x500
- Dimension B: 500 mm
- Height: 160 mm
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Surface: Strip galvanized
- Type of connector, cable support system: Screwed
- Wide-span version: yes
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 68,6073 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x500 |
| Dimension B | 500 mm |
| Height | 160 mm |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | yes |
| Width | 500 mm |
