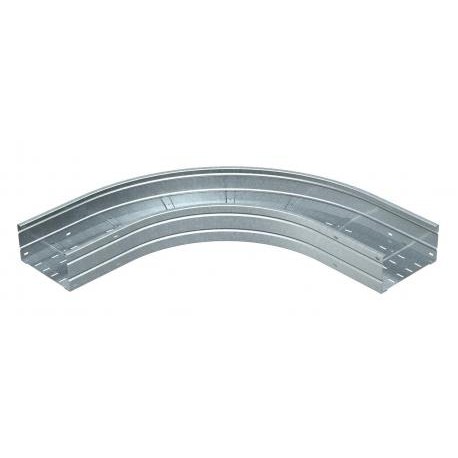

OBO BETTERMANN WRB 90 164 FT WRB 90 164 FT 6098738 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x400, Hot-dip galvanised, DIN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRB 90 164 FT 6098738 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x400, Hot-dip galvanised, DIN..

WRB 90 164 FT

6098738

OBO BETTERMANN

1 Pcs.

90° bend for wide span cable tray 160, 160x400, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° WRB 90 164 FT bend, p/band. Wide span sheet 160 160x400 Steel, St,Hot-dip galvanized, DIN EN ISO 1461 90° 160 FT bend. 90° bend, horizontal, for all wide-span tray systems with a flange height of 160 mm.

Cables > Bend for cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann wide span cable tray bend, part number WRB 90 164 FT (6098738), is designed to route heavy-duty electrical cabling systems around 90-degree horizontal corners. Built for heavy industrial and infrastructure applications, hot-dip galvanized steel fittings provide exceptional load-bearing strength and corrosion protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): 90°
  • Suitable for cable tray height (EF004822): 160 mm
  • Suitable for cable tray width (EF004820): 400 mm
  • Material thickness (EF000386): 2 mm
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): Yes
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Coupler not included
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
90° bend, horizontal, for all wide span cable trays of 160 mm side height.
