View larger
Images are for illustrative purposes only. Please refer to data sheet for details

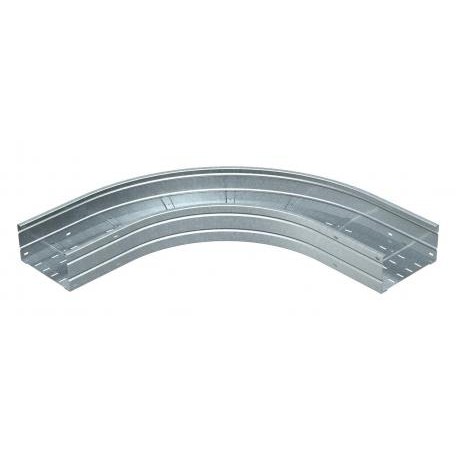

WRB 90 163 FS 6098707 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x300, Strip-galvanised, DIN E..
WRB 90 163 FS
6098707
OBO BETTERMANN
1 Pcs.
90° bend for wide span cable tray 160, 160x300, Strip-galvanised, DIN EN 10147, Steel, St
90° bend 160 FS. 90° bend, horizontal, for all wide span cable trays of 160 mm side height.
Cables > Bend for cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 57,3056 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x300 |
| Dimension B | 300 mm |
| Height | 160 mm |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | yes |
| Width | 300 mm |
