View larger
Images are for illustrative purposes only. Please refer to data sheet for details

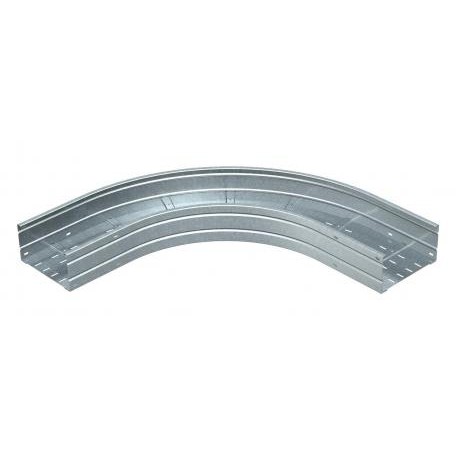

WRB 90 162 FT 6098730 OBO BETTERMANN 90° bend for wide span cable tray 160, 160x200, Hot-dip galvanised, DIN..
WRB 90 162 FT
6098730
OBO BETTERMANN
1 Pcs.
90° bend for wide span cable tray 160, 160x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
90° WRB 90 162 FT bend, p/band. Wide span sheet 160 160x200 Steel, St,Hot-dip galvanized, DIN EN ISO 1461
90° 160 FT bend. 90° bend, horizontal, for all wide-span tray systems with a flange height of 160 mm.
Cables > Bend for cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
90° bend, horizontal, for all wide span cable trays of 160 mm side height.
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Horizontal |
| Angle (EF001218) | 90° |
| Suitable for cable tray height (EF004822) | 160 mm |
| Suitable for cable tray width (EF004820) | 200 mm |
| Material thickness (EF000386) | 2 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Hot dip galvanized |
