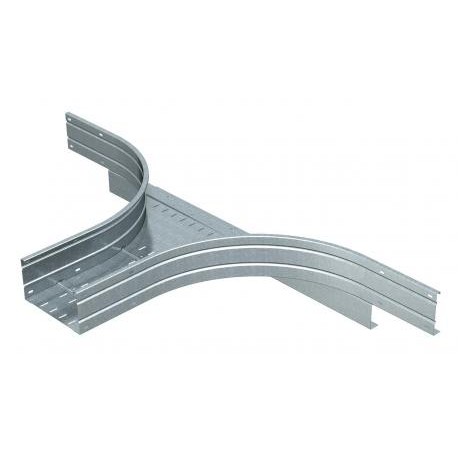

WRAA 166 FS 6098816 OBO BETTERMANN Mounting/branch piece for wide span cable tray 160, 160x600, Strip-galvan..
WRAA 166 FS
6098816
OBO BETTERMANN
1 Pcs.
Mounting/branch piece for wide span cable tray 160, 160x600, Strip-galvanised, DIN EN 10147, Steel, St
Add-on tee 160 FS. Add-on tee for horizontal use. For all wide span cable trays of 160 mm side height.
Cables > Add-on tee for cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 79,3819 kg CO2e / 1 Piece |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x600 |
| Dimension B | 600 mm |
| Dimension R | 500 mm |
| Height | 160 mm |
| Material | Steel |
| Material thickness, floor plate | 1,5 mm |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 2 mm |
| Rail thickness | 2 mm |
| Rustproof steel, pickled | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | yes |
| Width | 600 mm |
