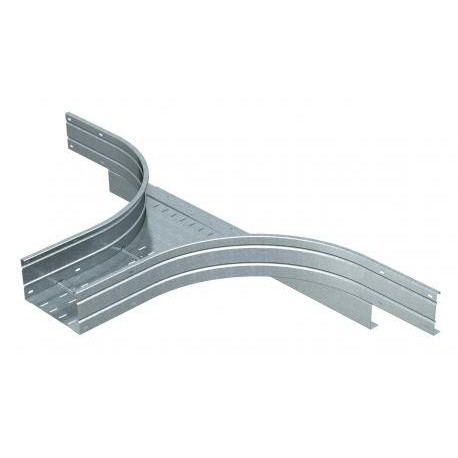

OBO BETTERMANN WRAA 165 FS WRAA 165 FS 6098812 OBO BETTERMANN Mounting/branch piece for wide span cable tray 160, 160x500, Strip-galvan.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRAA 165 FS 6098812 OBO BETTERMANN Mounting/branch piece for wide span cable tray 160, 160x500, Strip-galvan..

WRAA 165 FS

6098812

OBO BETTERMANN

1 Pcs.

Mounting/branch piece for wide span cable tray 160, 160x500, Strip-galvanised, DIN EN 10147, Steel, St Add-on tee 160 FS. Add-on tee for horizontal use. For all wide span cable trays of 160 mm side height.

Cables > Add-on tee for cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a junction component in large electrical runs, the Obo Bettermann WRAA 165 FS is a mounting/branch piece for wide span cable tray built to handle heavy-duty cable management loads. These fittings allow technicians to split wide cable trays efficiently while preserving the mechanical integrity of the support structure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 68,0454 kg CO2e / 1 Piece
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 160x500
  • Dimension B: 500 mm
  • Dimension R: 500 mm
  • Height: 160 mm
  • Material: Steel
  • Material thickness, floor plate: 1,5 mm
  • NATO hole pattern: no
  • Plate thickness: 2 mm
  • Rail thickness: 2 mm
  • Rustproof steel, pickled: no
  • Surface: Strip galvanized
  • Type of connector, cable support system: Screwed
  • Wide-span version: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate68,0454 kg CO2e / 1 Piece
Colourzinc
Connector versionWithout connectors
Dimension160x500
Dimension B500 mm
Dimension R500 mm
Height160 mm
MaterialSteel
Material thickness, floor plate1,5 mm
NATO hole patternno
Plate thickness2 mm
Rail thickness2 mm
Rustproof steel, pickledno
SurfaceStrip galvanized
Type of connector, cable support systemScrewed
Wide-span versionyes
Width500 mm
