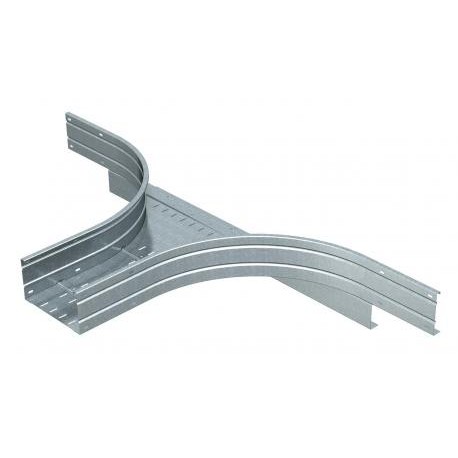

OBO BETTERMANN WRAA 164 FT WRAA 164 FT 6098835 OBO BETTERMANN Mounting/branch piece for wide span cable tray 160, 160x400, Hot-dip galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRAA 164 FT 6098835 OBO BETTERMANN Mounting/branch piece for wide span cable tray 160, 160x400, Hot-dip galv..

WRAA 164 FT

6098835

OBO BETTERMANN

1 Pcs.

Mounting/branch piece for wide span cable tray 160, 160x400, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Add-on tee 160 FT. Add-on tee for horizontal use. For all wide span cable trays of 160 mm side height.

Cables > Add-on tee for cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-capacity installations, this Obo Bettermann WRAA 164 FT Mounting/branch piece for wide span cable tray 160, 160x400, Hot-dip galv.. provides secure branching solutions for heavy cable routes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 77,6535 kg CO2e / 1 Piece
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 160x400
  • Dimension B: 400 mm
  • Dimension R: 500 mm
  • Height: 160 mm
  • Material: Steel
  • Material thickness, floor plate: 1,5 mm
  • NATO hole pattern: no
  • Plate thickness: 2 mm
  • Rail thickness: 2 mm
  • Rustproof steel, pickled: no
  • Surface: Hot-dip galvanised
  • Type of connector, cable support system: Screwed
  • Wide-span version: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate77,6535 kg CO2e / 1 Piece
Colourzinc
Connector versionWithout connectors
Dimension160x400
Dimension B400 mm
Dimension R500 mm
Height160 mm
MaterialSteel
Material thickness, floor plate1,5 mm
NATO hole patternno
Plate thickness2 mm
Rail thickness2 mm
Rustproof steel, pickledno
SurfaceHot-dip galvanised
Type of connector, cable support systemScrewed
Wide-span versionyes
Width400 mm
