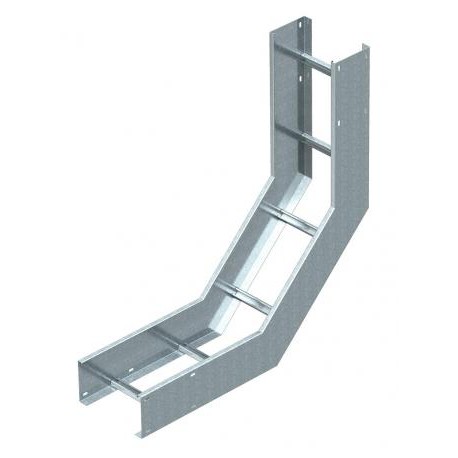

OBO BETTERMANN WLBS 90 165 FT WLBS 90 165 FT 6230466 OBO BETTERMANN 90° bend rising for wide span cable ladder 160, 160x500, Hot-dip galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WLBS 90 165 FT 6230466 OBO BETTERMANN 90° bend rising for wide span cable ladder 160, 160x500, Hot-dip galva..

WLBS 90 165 FT

6230466

OBO BETTERMANN

1 Pcs.

90° bend rising for wide span cable ladder 160, 160x500, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° upward curve, p/ band.esc. wide-span 160, 160x500, hot-dip galvanised steel, DIN EN ISO 1461 90° vertical bend, rising, 160 FT. 90° vertical bend, for all wide span cable ladders of 160 mm side height.

Cables > Bend for cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° bend rising for wide span cable ladder produced by Obo Bettermann, catalog number WLBS 90 165 FT. Rising vertical bends allow cable tray assemblies to transition upward smoothly along industrial walls or structures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical rising
  • CO2 Footprint (GWP) Cradle-to-Gate: 35,4706 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 160x500
  • Dimension B: 500 mm
  • Dimension R: 500 mm
  • Height: 160 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated

More info

▲
Bend (angle)90°
Change of directionVertical rising
CO2 Footprint (GWP) Cradle-to-Gate35,4706 kg CO2e / 1 Piece
Colourzinc
Dimension160x500
Dimension B500 mm
Dimension R500 mm
Height160 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionyes
Width500 mm
