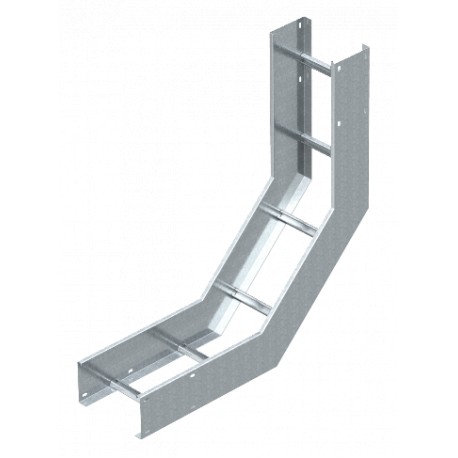

OBO BETTERMANN WLBS 90 163 FT WLBS 90 163 FT 6230431 OBO BETTERMANN 90° bend rising for wide span cable ladder 160, 160x300, Hot-dip galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WLBS 90 163 FT 6230431 OBO BETTERMANN 90° bend rising for wide span cable ladder 160, 160x300, Hot-dip galva..

WLBS 90 163 FT

6230431

OBO BETTERMANN

1 Pcs.

90° bend rising for wide span cable ladder 160, 160x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° vertical bend, rising, 160 FT. 90° vertical bend, for all wide span cable ladders of 160 mm side height.

Cables > Bend for cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° bend rising for wide span cable ladder built by Obo Bettermann, designated as WLBS 90 163 FT. Hot-dip galvanised rising elbows ensure structural integrity when routing heavy power cables upward.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical rising
  • CO2 Footprint (GWP) Cradle-to-Gate: 33,7932 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 160x300
  • Dimension B: 300 mm
  • Dimension R: 300 mm
  • Height: 160 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated

More info

▲
Bend (angle)90°
Change of directionVertical rising
CO2 Footprint (GWP) Cradle-to-Gate33,7932 kg CO2e / 1 Piece
Colourzinc
Dimension160x300
Dimension B300 mm
Dimension R300 mm
Height160 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionyes
Width300 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
