OBO BETTERMANN WLBF 90 166 FT WLBF 90 166 FT 6230776 OBO BETTERMANN 90° bend falling for wide span cable ladder 160, 160x600, Hot-dip galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

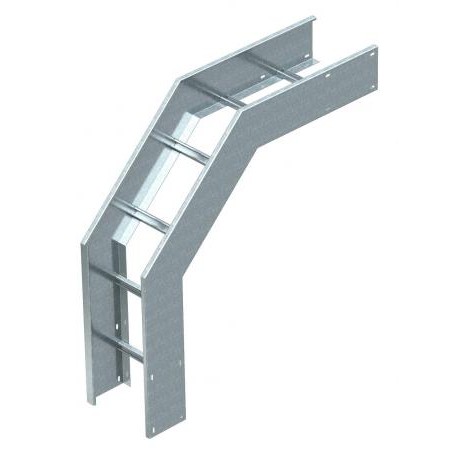

WLBF 90 166 FT 6230776 OBO BETTERMANN 90° bend falling for wide span cable ladder 160, 160x600, Hot-dip galv..

WLBF 90 166 FT

6230776

OBO BETTERMANN

1 Pcs.

90° bend falling for wide span cable ladder 160, 160x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° vertical bend, falling 160 FT. 90° vertical bend, for all wide span cable ladders of 160 mm side height.

Cables > Bend for cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° bend falling for wide span cable ladder from Obo Bettermann, item WLBF 90 166 FT. These structural components facilitate reliable downward directional changes for extensive heavy-duty cable networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical, falling
  • CO2 Footprint (GWP) Cradle-to-Gate: 38,6839 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 160x600
  • Dimension B: 600 mm
  • Dimension R: 600 mm
  • Height: 160 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated

More info

▲
Bend (angle)90°
Change of directionVertical, falling
CO2 Footprint (GWP) Cradle-to-Gate38,6839 kg CO2e / 1 Piece
Colourzinc
Dimension160x600
Dimension B600 mm
Dimension R600 mm
Height160 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionyes
Width600 mm
