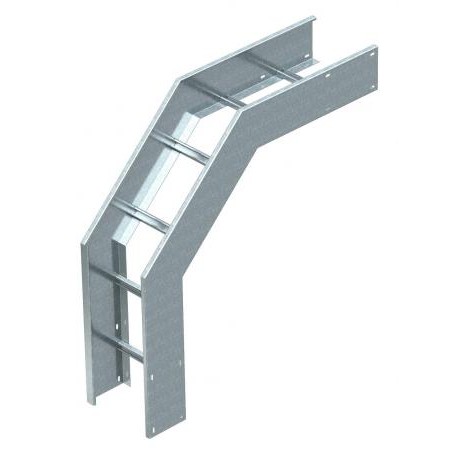

OBO BETTERMANN WLBF 90 162 FT WLBF 90 162 FT 6230725 OBO BETTERMANN 90° bend falling for wide span cable ladder 160, 160x200, Hot-dip galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WLBF 90 162 FT 6230725 OBO BETTERMANN 90° bend falling for wide span cable ladder 160, 160x200, Hot-dip galv..

WLBF 90 162 FT

6230725

OBO BETTERMANN

1 Pcs.

90° bend falling for wide span cable ladder 160, 160x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° vertical bend, falling 160 FT. 90° vertical bend, for all wide span cable ladders of 160 mm side height.

Cables > Bend for cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° bend falling for wide span cable ladder manages downward directional changes in heavy-duty commercial or industrial cable distribution infrastructures. These parts ensure that high-capacity wiring paths transition securely around vertical corners without risking jacket damage. The Obo Bettermann WLBF 90 162 FT delivers reliable mechanical support for demanding industrial runs.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical, falling
  • CO2 Footprint (GWP) Cradle-to-Gate: 32,563 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 160x200
  • Dimension B: 200 mm
  • Dimension R: 200 mm
  • Height: 160 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Side rail version: Flat profile
  • Surface: Hot-dip galvanised
  • Version of the rungs: Profile unperforated

More info

▲
Bend (angle)90°
Change of directionVertical, falling
CO2 Footprint (GWP) Cradle-to-Gate32,563 kg CO2e / 1 Piece
Colourzinc
Dimension160x200
Dimension B200 mm
Dimension R200 mm
Height160 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rustproof steel, pickledno
Side perforationno
Side rail versionFlat profile
SurfaceHot-dip galvanised
Version of the rungsProfile unperforated
Wide-span versionyes
Width200 mm
