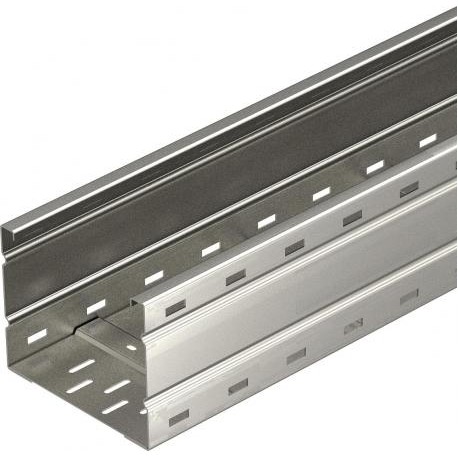

WKSG 166 VA 4301 6098579 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x600x6000, Sta..
WKSG 166 A2
6098579
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The WKSG 166 A2 wide clamping cable duct by Obo Bettermann accommodates heavy-duty power cables and large bundles in demanding industrial plants. Wide cable ducts offer expanded surface areas for heavy cable loads across extensive facility infrastructures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 65,8621 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Without connectors
- Dimension: 160x600x6000
- Dimension: 160 X 600
- Dimension B: 600 mm
- Dimension L: 6000 mm
- Height: 160 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 65,8621 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Without connectors |
| Dimension | 160x600x6000 |
| Dimension | 160 X 600 |
| Dimension B | 600 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 3 kN/m |
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 914 cm² |
| Usable cross-section | 91400 mm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 600 mm |
