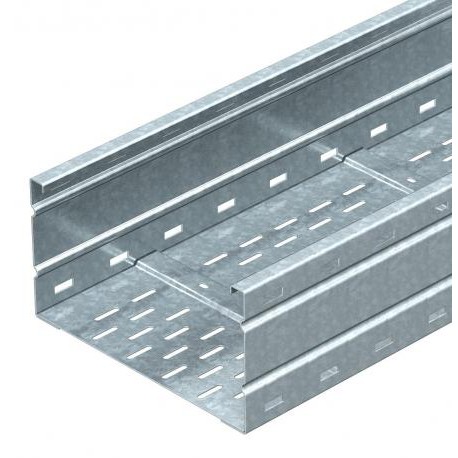

WKSG 166 FT 6098566 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x600x6000, Hot-dip ..
WKSG 166 FT
6098566
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A hot-dip galvanised Obo Bettermann WKSG 166 FT wide clamping cable duct manages high-volume cable installations across large industrial facilities. Wide cable ducts offer expanded surface areas for heavy electrical feeder lines and complex bundle layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 29,4973 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 160x600x6000
- Dimension: 600x6000
- Dimension B: 600 mm
- Dimension L: 6000 mm
- Height: 160 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 29,4973 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x600x6000 |
| Dimension | 600x6000 |
| Dimension B | 600 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 3 kN/m |
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 91400 mm² |
| Usable cross-section | 914 cm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 600 mm |
