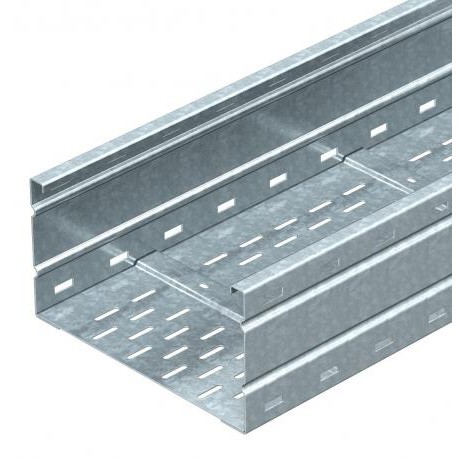

WKSG 166 FS 6098517 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x600x6000, Strip-ga..
WKSG 166 FS
6098517
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A strip-galvanised Obo Bettermann WKSG 166 FS wide clamping cable duct organizes and protects high-capacity cable runs in large manufacturing facilities. Wide ducts deliver sturdy, reliable pathways for heavy electrical distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 30,9536 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 160 x 600
- Dimension: 160x600x6000
- Dimension B: 600 mm
- Dimension L: 6000 mm
- Height: 160 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 30,9536 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160 x 600 |
| Dimension | 160x600x6000 |
| Dimension B | 600 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 3 kN/m |
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 914 cm² |
| Usable cross-section | 91400 mm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 600 mm |
