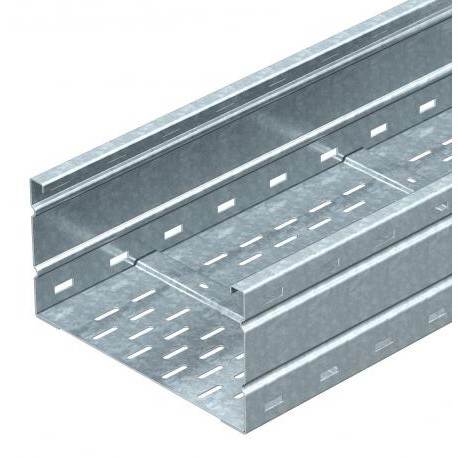

WKSG 165 FT 6098562 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x500x6000, Hot-dip ..
WKSG 165 FT
6098562
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Obo Bettermann, the WKSG 165 FT is a wide clamping cable duct featuring floor beading and a perforated design for heavy load cable organization. Wide span cable ducts provide structural support for massive industrial wiring networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 27,1458 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 160x500x6000
- Dimension: 500x6000
- Dimension B: 500 mm
- Dimension L: 6000 mm
- Height: 160 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 27,1458 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x500x6000 |
| Dimension | 500x6000 |
| Dimension B | 500 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 3 kN/m |
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 761 cm² |
| Usable cross-section | 76100 mm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 500 mm |
