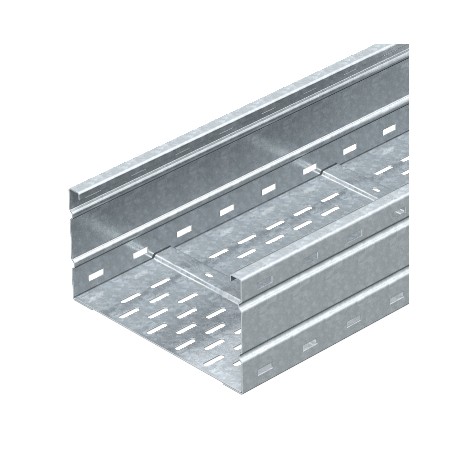

OBO BETTERMANN WKSG 165 FS WKSG 165 FS 6098513 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x500x6000, Strip-ga.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKSG 165 FS 6098513 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x500x6000, Strip-ga..

WKSG 165 FS

6098513

OBO BETTERMANN

6 m.

Wide clamping cable duct perforated, floor beaded, 160x500x6000, Strip-galvanised, DIN EN 10147, Steel, St WKSG 165 FS wide opening cable tray, perforated, corrugated floor 160x500x6000 Steel, St, strip galvanized, DIN EN 10346 Wide span cable tray WKSG 160 FS. Wide span cable tray system, perforated, with a side height of 160 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for substantial industrial cable loads, the WKSG 165 FS 6098513 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x500x6000, Strip-ga.. manufactured by Obo Bettermann provides robust wire routing capabilities. Wide cable ducts are standard additions to large-scale electrical installations where high-capacity routing and structural rigidity are mandatory. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 160 mm
  • Width (EF000008): 500 mm
  • Material thickness (EF000386): 2 mm
  • Length (EF001438): 6000 mm
  • Working length (EF006318): 6000 mm
  • Useful cross section (EF005140): 76100 mm²
  • Side perforation (EF001122): Yes
  • Bottom perforation (EF004545): Yes
  • Model (EF000010): Coupler not included
  • Type of connector (EF000141): Screwed
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised
  • Weight (EF000167): 12.16 kg/m
  • Possible support spacing (EF017261): 3 m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate28,3328 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension160 x 500
Dimension160x500x6000
Dimension B500 mm
Dimension L6000 mm
Height160 mm
Length6000 mm
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
Plate thickness2 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 3.0 m3 kN/m
Support spacing 3.5 m2,73 kN/m
Support spacing 4.0 m2,5 kN/m
Support spacing 4.5 m2,24 kN/m
Support spacing 5.0 m2 kN/m
Support spacing 6.0 m1,6 kN/m
Support spacing 7.0 m1,3 kN/m
Support spacing 8.0 m1 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemScrewed
Usable cross-section76100 mm²
Usable cross-section761 cm²
Usable length6000 mm
Wide-span versionyes
Width500 mm
