View larger
Images are for illustrative purposes only. Please refer to data sheet for details

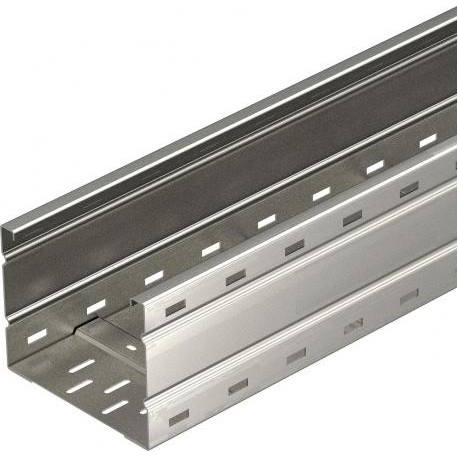

WKSG 164 VA 4301 6098575 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x400x6000, Sta..
WKSG 164 A2
6098575
OBO BETTERMANN
6 m.
Wide clamping cable duct perforated, floor beaded, 160x400x6000, Stainless steel, grade 304, VA, 1.4301
Wide span cable tray WKSG 160 A2. Wide span cable tray system, perforated, with a side height of 160 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 54,5612 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Without connectors |
| Dimension | 160 X 400 |
| Dimension | 160x400x6000 |
| Dimension B | 400 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 3 kN/m |
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 608 cm² |
| Usable cross-section | 60800 mm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 400 mm |
