View larger
Images are for illustrative purposes only. Please refer to data sheet for details

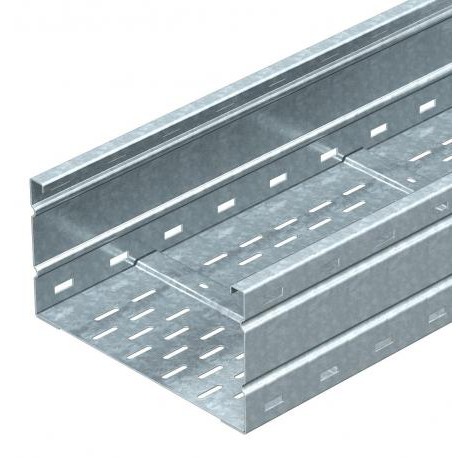

WKSG 164 FS 6098509 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x400x6000, Strip-ga..
WKSG 164 FS
6098509
OBO BETTERMANN
6 m.
Wide clamping cable duct perforated, floor beaded, 160x400x6000, Strip-galvanised, DIN EN 10147, Steel, St
WKSG 164 FS wide bay cable tray, perforated, corrugated floor 160x400x6000 Steel, St, strip galvanized, DIN EN 10346
Wide span cable tray WKSG 160 FS. Wide span cable tray system, perforated, with a side height of 160 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 25,6643 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160 x 400 |
| Dimension | 160x400x6000 |
| Dimension B | 400 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 3 kN/m |
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 60800 mm² |
| Usable cross-section | 608 cm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 400 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 160 mm |
| Width (EF000008) | 400 mm |
| Material thickness (EF000386) | 2 mm |
| Length (EF001438) | 6000 mm |
| Working length (EF006318) | 6000 mm |
| Useful cross section (EF005140) | 60800 mm² |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 11.08 kg/m |
| Possible support spacing (EF017261) | 3 m |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 3000 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 2500 |
| Safe working load according to IEC 61537 with support spacing 5.0 m (EF017269) | 2000 |
| Safe working load according to IEC 61537 with support spacing 6.0 m (EF017270) | 1600 |
| Safe working load according to IEC 61537 with support spacing 7.0 m (EF017271) | 1300 |
| Safe working load according to IEC 61537 with support spacing 8.0 m (EF017272) | 1000 |
