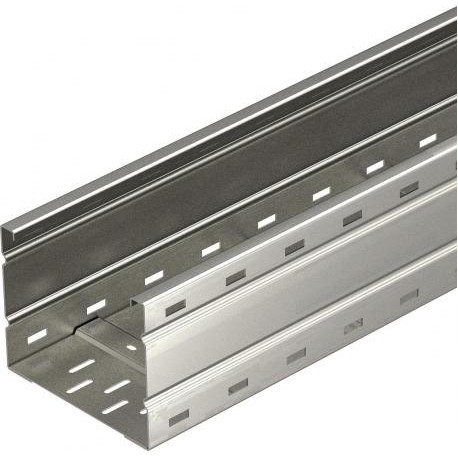

WKSG 163 VA 4301 6098573 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x300x6000, Sta..
WKSG 163 A2
6098573
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
WKSG 163 VA 4301 6098573 OBO BETTERMANN wide clamping cable duct perforated, floor beaded, 160x300x6000, Sta.. is a heavy-duty wide span stainless steel cable duct built for supporting expansive cable runs in corrosive industrial sectors. Wide span duct systems handle heavy cable loads across extended support spans with minimal deflection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 48,8197 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Without connectors
- Dimension: 160 X 300
- Dimension: 160x300x6000
- Dimension B: 300 mm
- Dimension L: 6000 mm
- Height: 160 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Stainless steel 1.4301
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 48,8197 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Without connectors |
| Dimension | 160 X 300 |
| Dimension | 160x300x6000 |
| Dimension B | 300 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 2,9 kN/m |
| Support spacing 3.5 m | 2,59 kN/m |
| Support spacing 4.0 m | 2,3 kN/m |
| Support spacing 4.5 m | 2,04 kN/m |
| Support spacing 5.0 m | 1,8 kN/m |
| Support spacing 6.0 m | 1,4 kN/m |
| Support spacing 7.0 m | 1 kN/m |
| Support spacing 8.0 m | 0,7 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 45500 mm² |
| Usable cross-section | 455 cm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 300 mm |
