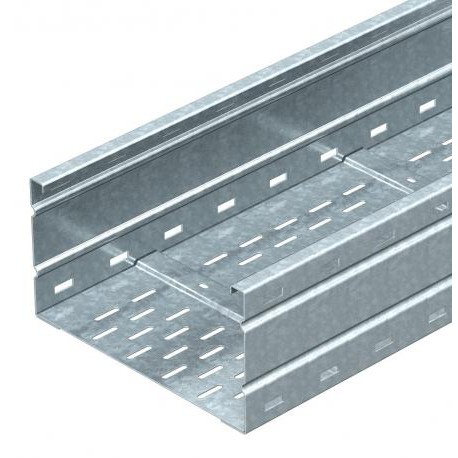

WKSG 163 FT 6098554 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 160x300x6000, Hot-dip ..
WKSG 163 FT
6098554
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann WKSG 163 FT wide clamping cable duct perforated, floor beaded, 160x300x6000, Hot-dip .. provides massive load capacity for extensive cable networks in heavy industrial plants and power stations. Wide cable ducts safely organize large bundles of heavy-duty power cables across long spans. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-span: 21,8201 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 160x300x6000
- Dimension: 300x6000
- Dimension B: 300 mm
- Dimension L: 6000 mm
- Height: 160 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
- Rustproof steel, pickled: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 21,8201 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 160x300x6000 |
| Dimension | 300x6000 |
| Dimension B | 300 mm |
| Dimension L | 6000 mm |
| Height | 160 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 2,9 kN/m |
| Support spacing 3.5 m | 2,59 kN/m |
| Support spacing 4.0 m | 2,3 kN/m |
| Support spacing 4.5 m | 2,04 kN/m |
| Support spacing 5.0 m | 1,8 kN/m |
| Support spacing 6.0 m | 1,4 kN/m |
| Support spacing 7.0 m | 1 kN/m |
| Support spacing 8.0 m | 0,7 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 45500 mm² |
| Usable cross-section | 455 cm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 300 mm |
