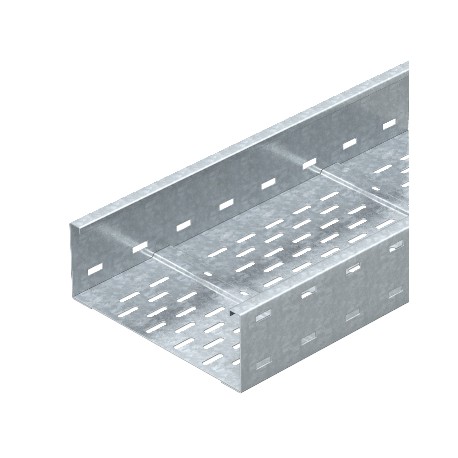

WKSG 160 FS 6098127 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x600x6000, Strip-ga..
WKSG 160 FS
6098127
OBO BETTERMANN
6 m.
Wide clamping cable duct perforated, floor beaded, 110x600x6000, Strip-galvanised, DIN EN 10147, Steel, St
Wide span cable tray WKSG 110 FS. Wide span cable tray system, perforated, with a side height of 110 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Wide clamping cable duct Obo Bettermann WKSG 160 FS delivers exceptional load-bearing capacity for extensive cable distribution across massive industrial structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 27,3953 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110 x 600
- Dimension: 110x600x6000
- Dimension B: 600 mm
- Dimension H: 10 mm
- Dimension L: 6000 mm
- Height: 110 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 27,3953 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110 x 600 |
| Dimension | 110x600x6000 |
| Dimension B | 600 mm |
| Dimension H | 10 mm |
| Dimension L | 6000 mm |
| Height | 110 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 2,9 kN/m |
| Support spacing 3.5 m | 2,43 kN/m |
| Support spacing 4.0 m | 2 kN/m |
| Support spacing 4.5 m | 1,72 kN/m |
| Support spacing 5.0 m | 1,5 kN/m |
| Support spacing 6.0 m | 1 kN/m |
| Support spacing 7.0 m | 0,7 kN/m |
| Support spacing 8.0 m | 0,4 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 614 cm² |
| Usable cross-section | 61400 mm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 600 mm |
