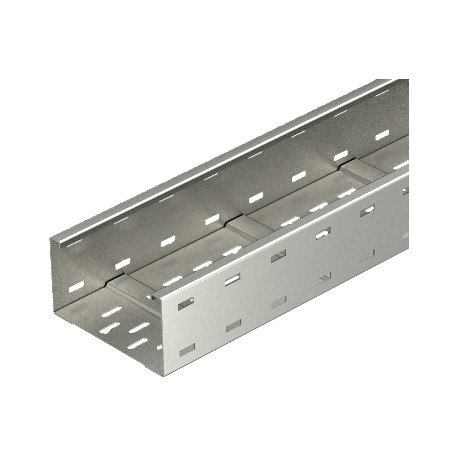

OBO BETTERMANN WKSG 140 A2 WKSG 140 VA 4301 6098169 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x400x6000, Sta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKSG 140 VA 4301 6098169 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x400x6000, Sta..

WKSG 140 A2

6098169

OBO BETTERMANN

6 m.

Wide clamping cable duct perforated, floor beaded, 110x400x6000, Stainless steel, grade 304, VA, 1.4301 Wide span cable tray WKSG 110 A2. Wide span cable tray system, perforated, with a side height of 110 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Wide span cable ducts are heavy-duty raceway systems utilized in large-scale industrial plants to carry substantial bundles of electrical cables across wide support spans. This Obo Bettermann WKSG 140 A2 unit is manufactured from premium stainless steel to resist corrosive environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 47,2284 kg CO2e / 1 Meter
  • Colour: stainless steel
  • Connector version: Without connectors
  • Dimension: 110 X 400
  • Dimension: 110x400x6000
  • Dimension B: 400 mm
  • Dimension L: 6000 mm
  • Height: 110 mm
  • Length: 6000 mm
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Mounting perforation in base: yes
  • Plate thickness: 2 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate47,2284 kg CO2e / 1 Meter
Colourstainless steel
Connector versionWithout connectors
Dimension110 X 400
Dimension110x400x6000
Dimension B400 mm
Dimension L6000 mm
Height110 mm
Length6000 mm
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialStainless steel 1.4301
Mounting perforation in baseyes
Plate thickness2 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 3.0 m2,9 kN/m
Support spacing 3.5 m2,43 kN/m
Support spacing 4.0 m2 kN/m
Support spacing 4.5 m1,72 kN/m
Support spacing 5.0 m1,5 kN/m
Support spacing 6.0 m1 kN/m
Support spacing 7.0 m0,7 kN/m
Support spacing 8.0 m0,4 kN/m
SurfaceBright, treated
Type of connector, cable support systemScrewed
Usable cross-section40800 mm²
Usable cross-section408 cm²
Usable length6000 mm
Wide-span versionyes
Width400 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
