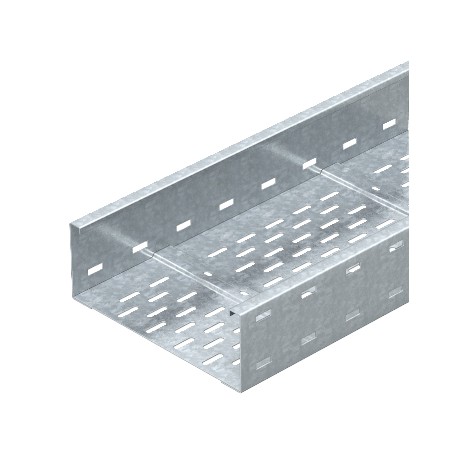

OBO BETTERMANN WKSG 140 FS WKSG 140 FS 6098119 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x400x6000, Strip-ga.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKSG 140 FS 6098119 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x400x6000, Strip-ga..

WKSG 140 FS

6098119

OBO BETTERMANN

6 m.

Wide clamping cable duct perforated, floor beaded, 110x400x6000, Strip-galvanised, DIN EN 10147, Steel, St WKSG 140 FS wide opening cable tray, perforated, corrugated floor 110x400x6000 Steel, St, strip galvanized, DIN EN 10346

Cables > Cable tray/wide span cable tray
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Wide clamping cable duct perforated, floor beaded, 110x400x6000, Strip-ga.. produced by Obo Bettermann provides heavy-duty support and organization for major cable runs in industrial environments. Metal cable ducts protect electrical lines from physical stress across wide support spans.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 110 mm
  • Width (EF000008): 400 mm
  • Material thickness (EF000386): 2 mm
  • Length (EF001438): 6000 mm
  • Working length (EF006318): 6000 mm
  • Useful cross section (EF005140): 40800 mm²
  • Side perforation (EF001122): Yes
  • Bottom perforation (EF004545): Yes
  • Model (EF000010): Coupler not included
  • Type of connector (EF000141): Screwed
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised
  • Weight (EF000167): 9.22 kg/m
  • Possible support spacing (EF017261): 3 m

More info

▲
WKSG 110 = wide span cable tray system, perforated, with a side height of 110 mm
