View larger
Images are for illustrative purposes only. Please refer to data sheet for details

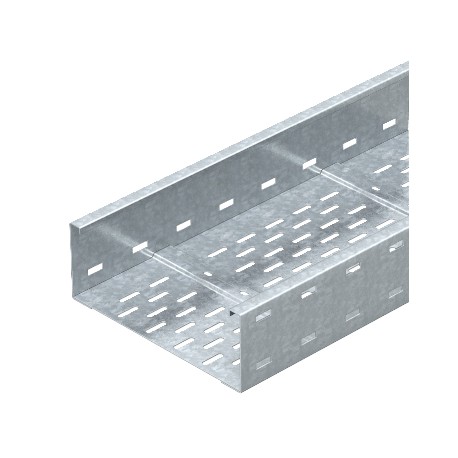

WKSG 130 FT 6098145 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x300x6000, Hot-dip ..
WKSG 130 FT
6098145
OBO BETTERMANN
6 m.
Wide clamping cable duct perforated, floor beaded, 110x300x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Wide span cable tray WKSG 110 FT. Wide span cable tray system, perforated, with a side height of 110 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 18,4529 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110 x 300 |
| Dimension | 110x300x6000 |
| Dimension B | 300 mm |
| Dimension L | 6000 mm |
| Height | 110 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 2,5 kN/m |
| Support spacing 3.5 m | 2,01 kN/m |
| Support spacing 4.0 m | 1,6 kN/m |
| Support spacing 4.5 m | 1,32 kN/m |
| Support spacing 5.0 m | 1,1 kN/m |
| Support spacing 6.0 m | 0,75 kN/m |
| Support spacing 7.0 m | 0,45 kN/m |
| Support spacing 8.0 m | 0,2 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 30500 mm² |
| Usable cross-section | 305 cm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 300 mm |
