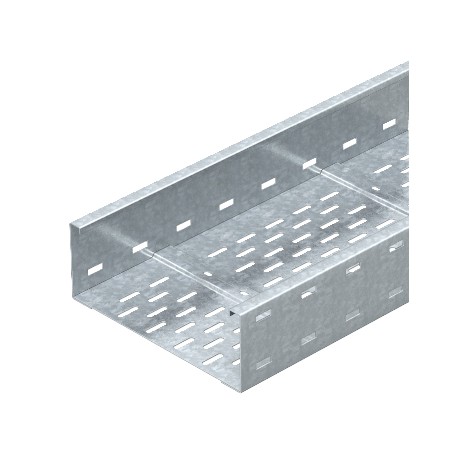

WKSG 120 FS 6098111 OBO BETTERMANN Wide clamping cable duct perforated, floor beaded, 110x200x6000, Strip-ga..
WKSG 120 FS
6098111
OBO BETTERMANN
6 m.
Cables > Cable tray/wide span cable tray
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The WKSG 120 FS wide clamping cable duct by Obo Bettermann offers a high-capacity pathway for large industrial cabling projects and multi-cable distribution systems. Wide ducts provide structural rigidity and ample space for heavy-duty plant wiring installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 16,8236 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110x200x6000
- Dimension: 200 x 110
- Dimension B: 200 mm
- Dimension H: 10 mm
- Dimension L: 6000 mm
- Height: 110 mm
- Length: 6000 mm
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- Plate thickness: 2 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 16,8236 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x200x6000 |
| Dimension | 200 x 110 |
| Dimension B | 200 mm |
| Dimension H | 10 mm |
| Dimension L | 6000 mm |
| Height | 110 mm |
| Length | 6000 mm |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 3.0 m | 2,5 kN/m |
| Support spacing 3.5 m | 2,01 kN/m |
| Support spacing 4.0 m | 1,6 kN/m |
| Support spacing 4.5 m | 1,32 kN/m |
| Support spacing 5.0 m | 1,1 kN/m |
| Support spacing 6.0 m | 0,75 kN/m |
| Support spacing 7.0 m | 0,45 kN/m |
| Support spacing 8.0 m | 0,2 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 202 cm² |
| Usable cross-section | 20200 mm² |
| Usable length | 6000 mm |
| Wide-span version | yes |
| Width | 200 mm |
