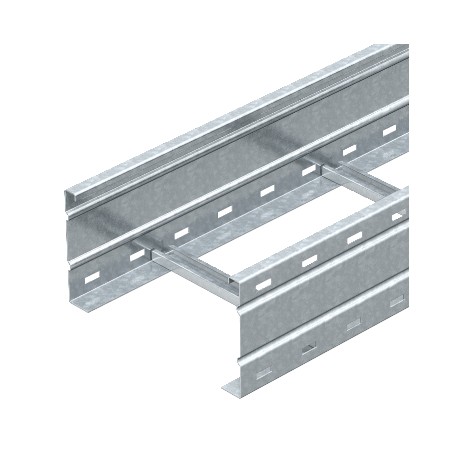

OBO BETTERMANN WKLG 1650 FS WKLG 1650 FS 6227066 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x500x6000, Strip-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKLG 1650 FS 6227066 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x500x6000, Strip-..

WKLG 1650 FS

6227066

OBO BETTERMANN

6 m.

Wide clamping cable conductor perforated side rail, 160x500x6000, Strip-galvanised, DIN EN 10147, Steel, St Wide span cable ladder WKLG 160 FS. Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A wide clamping cable conductor perforated side rail is utilized in heavy-duty commercial and industrial routing networks to support, organize, and manage large bundles of cables across expansive spans. This Obo Bettermann part number WKLG 1650 FS provides a structural pathway that protects wiring systems while optimizing space in complex infrastructure layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 19,8568 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 160 x 500
  • Dimension: 160x500x6000
  • Dimension B: 500 mm
  • Dimension L: 6000 mm
  • Fastening of rung: Fully riveted
  • Height: 160 mm
  • Length: 6000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung slot dimension: 16,50
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 3.0 m: 3 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate19,8568 kg CO2e / 1 Meter
Colourzinc
Dimension160 x 500
Dimension160x500x6000
Dimension B500 mm
Dimension L6000 mm
Fastening of rungFully riveted
Height160 mm
Length6000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung slot dimension16,50
Rustproof steel, pickledno
Side perforationyes
Support spacing 3.0 m3 kN/m
Support spacing 3.5 m2,73 kN/m
Support spacing 4.0 m2,5 kN/m
Support spacing 4.5 m2,24 kN/m
Support spacing 5.0 m2 kN/m
Support spacing 6.0 m1,6 kN/m
Support spacing 7.0 m1,3 kN/m
Support spacing 8.0 m1 kN/m
SurfaceStrip galvanized
Usable cross-section717 cm²
Usable cross-section71700 mm²
Version of the rungsProfile unperforated
Wide-span versionyes
Width500 mm
