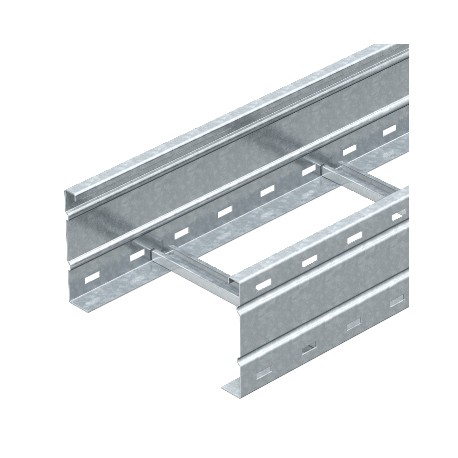

WKLG 1640 FS 6227058 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x400x6000, Strip-..
WKLG 1640 FS
6227058
OBO BETTERMANN
6 m.
Wide clamping cable conductor perforated side rail, 160x400x6000, Strip-galvanised, DIN EN 10147, Steel, St
Wide span cable ladder WKLG 160 FS. Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 19,1133 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 160 x 400 |
| Dimension | 160x400x6000 |
| Dimension B | 400 mm |
| Dimension L | 6000 mm |
| Fastening of rung | Fully riveted |
| Height | 160 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 3.0 m | 3 kN/m |
|---|---|
| Support spacing 3.5 m | 2,73 kN/m |
| Support spacing 4.0 m | 2,5 kN/m |
| Support spacing 4.5 m | 2,24 kN/m |
| Support spacing 5.0 m | 2 kN/m |
| Support spacing 6.0 m | 1,6 kN/m |
| Support spacing 7.0 m | 1,3 kN/m |
| Support spacing 8.0 m | 1 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 57200 mm² |
| Usable cross-section | 572 cm² |
| Version of the rungs | Profile unperforated |
| Wide-span version | yes |
| Width | 400 mm |
