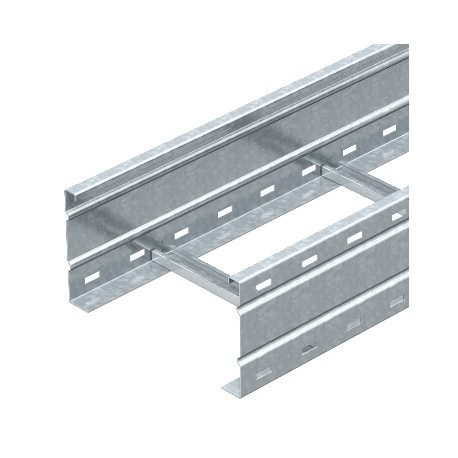

OBO BETTERMANN WKLG 1630 FT WKLG 1630 FT 6227139 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x300x6000, Hot-di.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKLG 1630 FT 6227139 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x300x6000, Hot-di..

WKLG 1630 FT

6227139

OBO BETTERMANN

6 m.

Wide clamping cable conductor perforated side rail, 160x300x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wide span cable ladder WKLG 160 FT. Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A wide clamping cable conductor perforated side rail functions as a robust backbone in industrial cable management architectures, engineered to secure heavy cable runs along walls, ceilings, or specialized frameworks. Components like this Obo Bettermann part number WKLG 1630 FT help maintain organized routing paths in demanding plant environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 17,4469 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 160 x 300
  • Dimension: 160x300x6000
  • Dimension B: 300 mm
  • Dimension L: 6000 mm
  • Fastening of rung: Fully riveted
  • Height: 160 mm
  • Length: 6000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung slot dimension: 16,50
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 3.0 m: 2,9 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate17,4469 kg CO2e / 1 Meter
Colourzinc
Dimension160 x 300
Dimension160x300x6000
Dimension B300 mm
Dimension L6000 mm
Fastening of rungFully riveted
Height160 mm
Length6000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung slot dimension16,50
Rustproof steel, pickledno
Side perforationyes
Support spacing 3.0 m2,9 kN/m
Support spacing 3.5 m2,59 kN/m
Support spacing 4.0 m2,3 kN/m
Support spacing 4.5 m2,04 kN/m
Support spacing 5.0 m1,8 kN/m
Support spacing 6.0 m1,4 kN/m
Support spacing 7.0 m1 kN/m
Support spacing 8.0 m0,7 kN/m
SurfaceHot-dip galvanised
Usable cross-section427 cm²
Usable cross-section42700 mm²
Version of the rungsProfile unperforated
Wide-span versionyes
Width300 mm
