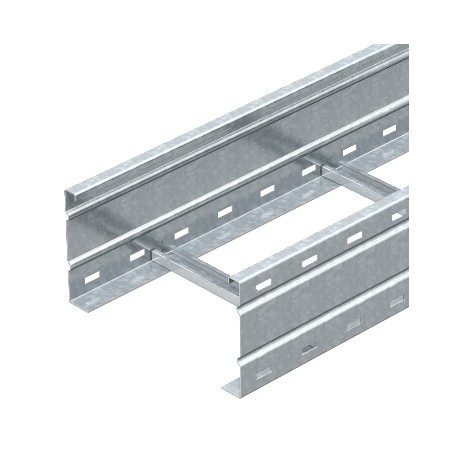

OBO BETTERMANN WKLG 1630 FS WKLG 1630 FS 6227031 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x300x6000, Strip-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKLG 1630 FS 6227031 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x300x6000, Strip-..

WKLG 1630 FS

6227031

OBO BETTERMANN

6 m.

Wide clamping cable conductor perforated side rail, 160x300x6000, Strip-galvanised, DIN EN 10147, Steel, St Wide span cable ladder WKLG 160 FS. Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A wide clamping cable conductor perforated side rail is integrated into electrical installations to support high-capacity cable arrays, providing structural integrity and organized pathways across large industrial facilities. This Obo Bettermann part number WKLG 1630 FS is built to handle substantial mechanical loads while facilitating efficient cable routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 18,3956 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 160x300x6000
  • Dimension: 160 x 300
  • Dimension B: 300 mm
  • Dimension L: 6000 mm
  • Fastening of rung: Fully riveted
  • Height: 160 mm
  • Length: 6000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung slot dimension: 16,50
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 3.0 m: 2,9 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate18,3956 kg CO2e / 1 Meter
Colourzinc
Dimension160x300x6000
Dimension160 x 300
Dimension B300 mm
Dimension L6000 mm
Fastening of rungFully riveted
Height160 mm
Length6000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung slot dimension16,50
Rustproof steel, pickledno
Side perforationyes
Support spacing 3.0 m2,9 kN/m
Support spacing 3.5 m2,59 kN/m
Support spacing 4.0 m2,3 kN/m
Support spacing 4.5 m2,04 kN/m
Support spacing 5.0 m1,8 kN/m
Support spacing 6.0 m1,4 kN/m
Support spacing 7.0 m1 kN/m
Support spacing 8.0 m0,7 kN/m
SurfaceStrip galvanized
Usable cross-section42700 mm²
Usable cross-section427 cm²
Version of the rungsProfile unperforated
Wide-span versionyes
Width300 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
