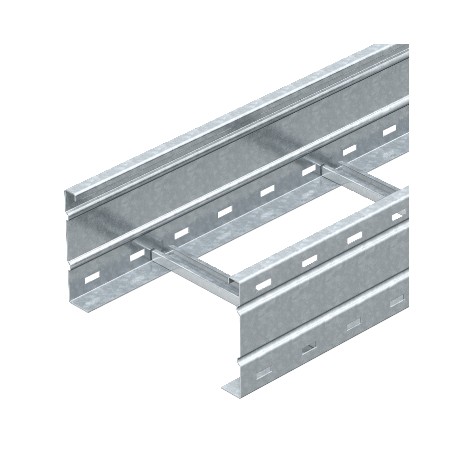

OBO BETTERMANN WKLG 1620 FT WKLG 1620 FT 6227120 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x200x6000, Hot-di.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKLG 1620 FT 6227120 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 160x200x6000, Hot-di..

WKLG 1620 FT

6227120

OBO BETTERMANN

6 m.

Wide clamping cable conductor perforated side rail, 160x200x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Wide span cable ladder WKLG 160 FT. Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to handle rigorous industrial cable routing requirements, this Obo Bettermann wide clamping cable conductor features side perforation and a hot-dip galvanized finish for lasting durability. Conductor systems are vital for maintaining orderly, safe pathways for extensive electrical wiring networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 16,6798 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 160 x 200
  • Dimension: 160x200x6000
  • Dimension B: 200 mm
  • Dimension L: 6000 mm
  • Fastening of rung: Fully riveted
  • Height: 160 mm
  • Length: 6000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung slot dimension: 16,50
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Support spacing 3.0 m: 2,9 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate16,6798 kg CO2e / 1 Meter
Colourzinc
Dimension160 x 200
Dimension160x200x6000
Dimension B200 mm
Dimension L6000 mm
Fastening of rungFully riveted
Height160 mm
Length6000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung slot dimension16,50
Rustproof steel, pickledno
Side perforationyes
Support spacing 3.0 m2,9 kN/m
Support spacing 3.5 m2,59 kN/m
Support spacing 4.0 m2,3 kN/m
Support spacing 4.5 m2,04 kN/m
Support spacing 5.0 m1,8 kN/m
Support spacing 6.0 m1,4 kN/m
Support spacing 7.0 m1 kN/m
Support spacing 8.0 m0,7 kN/m
SurfaceHot-dip galvanised
Usable cross-section282 cm²
Usable cross-section28200 mm²
Version of the rungsProfile unperforated
Wide-span versionyes
Width200 mm
