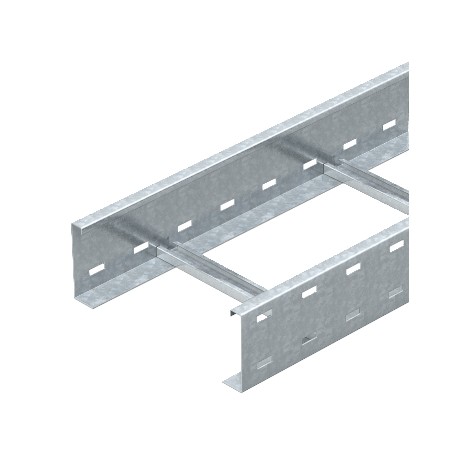

WKLG 1160 FT 6311075 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 110x600x6000, Hot-di..
WKLG 1160 FT
6311075
OBO BETTERMANN
6 m.
Wide clamping cable conductor perforated side rail, 110x600x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Wide span cable ladder WKLG 110 FT. Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 15,0975 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110 x 600 |
| Dimension | 110x600x6000 |
| Dimension B | 600 mm |
| Dimension L | 6000 mm |
| Fastening of rung | Fully riveted |
| Height | 110 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Profile (open) |
|---|---|
| Support spacing 3.0 m | 2,9 kN/m |
| Support spacing 3.5 m | 2,48 kN/m |
| Support spacing 4.0 m | 2,1 kN/m |
| Support spacing 4.5 m | 1,78 kN/m |
| Support spacing 5.0 m | 1,5 kN/m |
| Support spacing 6.0 m | 1 kN/m |
| Support spacing 7.0 m | 0,7 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 56600 mm² |
| Usable cross-section | 566 cm² |
| Version of the rungs | Profile perforated |
| Wide-span version | yes |
| Width | 600 mm |
