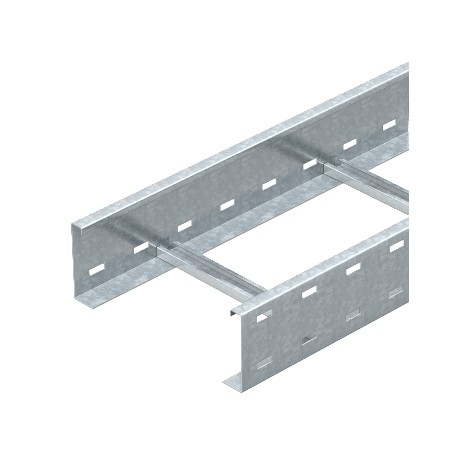

WKLG 1150 FS 6311020 OBO BETTERMANN Wide clamping cable conductor with side perforation, 110x500x6000, Strip..
WKLG 1150 FS
6311020
OBO BETTERMANN
6 m.
Cables > Cable ladder/wide span cable ladder
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A wide clamping cable conductor with side perforation is implemented in high-capacity electrical distribution systems to route and organize heavy cable bundles efficiently. This Obo Bettermann part number WKLG 1150 FS provides structural integrity and reliable support across extensive industrial spans.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 15,3508 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 110 x 500
- Dimension: 110x500x6000
- Dimension B: 500 mm
- Dimension L: 6000 mm
- Fastening of rung: Fully riveted
- Height: 110 mm
- Length: 6000 mm
- Maintain electrical functions: no
- Material: Steel
- Rail thickness: 2 mm
- Rung slot dimension: 17,00
- Rustproof steel, pickled: no
- Side perforation: yes
- Side rail version: Profile (open)
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 15,3508 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110 x 500 |
| Dimension | 110x500x6000 |
| Dimension B | 500 mm |
| Dimension L | 6000 mm |
| Fastening of rung | Fully riveted |
| Height | 110 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Profile (open) |
|---|---|
| Support spacing 3.0 m | 2,9 kN/m |
| Support spacing 3.5 m | 2,48 kN/m |
| Support spacing 4.0 m | 2,1 kN/m |
| Support spacing 4.5 m | 1,78 kN/m |
| Support spacing 5.0 m | 1,5 kN/m |
| Support spacing 6.0 m | 1 kN/m |
| Support spacing 7.0 m | 0,7 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 471 cm² |
| Usable cross-section | 47100 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | yes |
| Width | 500 mm |
