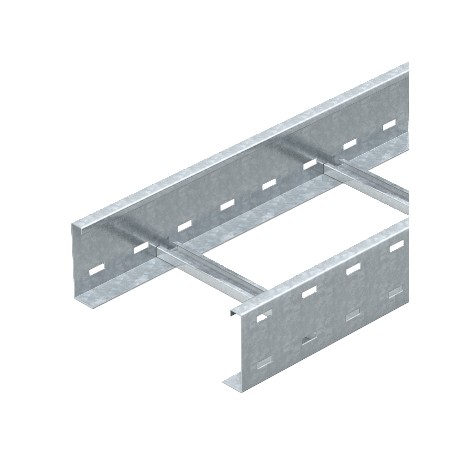

WKLG 1140 FS 6311016 OBO BETTERMANN Wide clamping cable conductor with side perforation, 110x400x6000, Strip..
WKLG 1140 FS
6311016
OBO BETTERMANN
6 m.
Wide clamping cable conductor with side perforation, 110x400x6000, Strip-galvanised, DIN EN 10147, Steel, St
Wide span cable ladder WKLG 110 FS. Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,7278 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110x400x6000 |
| Dimension | 110 x 400 |
| Dimension B | 400 mm |
| Dimension L | 6000 mm |
| Fastening of rung | Fully riveted |
| Height | 110 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Profile (open) |
|---|---|
| Support spacing 3.0 m | 2,9 kN/m |
| Support spacing 3.5 m | 2,48 kN/m |
| Support spacing 4.0 m | 2,1 kN/m |
| Support spacing 4.5 m | 1,78 kN/m |
| Support spacing 5.0 m | 1,5 kN/m |
| Support spacing 6.0 m | 1 kN/m |
| Support spacing 7.0 m | 0,7 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 376 cm² |
| Usable cross-section | 37600 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | yes |
| Width | 400 mm |
