View larger
Images are for illustrative purposes only. Please refer to data sheet for details

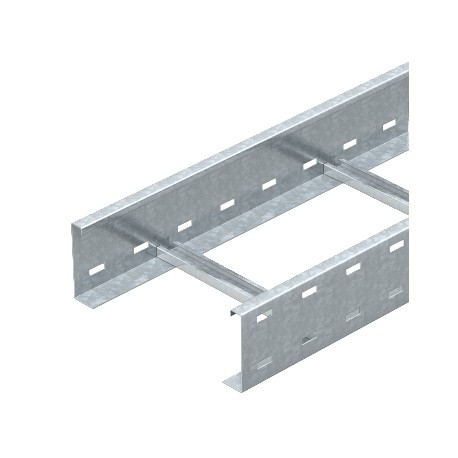

WKLG 1130 FT 6311063 OBO BETTERMANN Wide clamping cable conductor perforated side rail, 110x300x6000, Hot-di..
WKLG 1130 FT
6311063
OBO BETTERMANN
6 m.
Wide clamping cable conductor perforated side rail, 110x300x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Wide span cable ladder WKLG 110 FT. Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cables > Cable ladder/wide span cable ladder
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,1501 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110 x 300 |
| Dimension | 110x300x6000 |
| Dimension B | 300 mm |
| Dimension L | 6000 mm |
| Fastening of rung | Fully riveted |
| Height | 110 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 2 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Profile (open) |
|---|---|
| Support spacing 3.0 m | 2,5 kN/m |
| Support spacing 3.5 m | 1,98 kN/m |
| Support spacing 4.0 m | 1,6 kN/m |
| Support spacing 4.5 m | 1,31 kN/m |
| Support spacing 5.0 m | 1,1 kN/m |
| Support spacing 6.0 m | 0,8 kN/m |
| Support spacing 7.0 m | 0,4 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 281 cm² |
| Usable cross-section | 28100 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | yes |
| Width | 300 mm |
