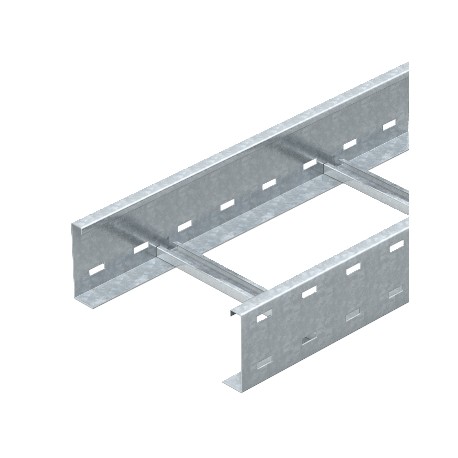

OBO BETTERMANN WKLG 1120 FS WKLG 1120 FS 6311008 OBO BETTERMANN Wide clamping cable conductor with side perforation, 110x200x6000, Strip.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WKLG 1120 FS 6311008 OBO BETTERMANN Wide clamping cable conductor with side perforation, 110x200x6000, Strip..

WKLG 1120 FS

6311008

OBO BETTERMANN

6 m.

Wide clamping cable conductor with side perforation, 110x200x6000, Strip-galvanised, DIN EN 10147, Steel, St Wide span cable ladder WKLG 110 FS. Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Cables > Cable ladder/wide span cable ladder
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for heavy-duty industrial spanning, the Obo Bettermann WKLG 1120 FS wide clamping cable conductor with side perforation accommodates large volumes of heavy power cables across extensive support spans. Wide-span cable ladder systems are commonly installed in power plants and heavy manufacturing facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 13,5242 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 110 x 200
  • Dimension: 110x200x6000
  • Dimension B: 200 mm
  • Dimension L: 6000 mm
  • Fastening of rung: Fully riveted
  • Height: 110 mm
  • Length: 6000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Rail thickness: 2 mm
  • Rung slot dimension: 17,00
  • Rustproof steel, pickled: no
  • Side perforation: yes
  • Side rail version: Profile (open)

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate13,5242 kg CO2e / 1 Meter
Colourzinc
Dimension110 x 200
Dimension110x200x6000
Dimension B200 mm
Dimension L6000 mm
Fastening of rungFully riveted
Height110 mm
Length6000 mm
Maintain electrical functionsno
MaterialSteel
Rail thickness2 mm
Rung slot dimension17,00
Rustproof steel, pickledno
Side perforationyes
Side rail versionProfile (open)
Support spacing 3.0 m2,5 kN/m
Support spacing 3.5 m1,98 kN/m
Support spacing 4.0 m1,6 kN/m
Support spacing 4.5 m1,31 kN/m
Support spacing 5.0 m1,1 kN/m
Support spacing 6.0 m0,8 kN/m
Support spacing 7.0 m0,4 kN/m
SurfaceStrip galvanized
Usable cross-section18600 mm²
Usable cross-section186 cm²
Version of the rungsProfile perforated
Wide-span versionyes
Width200 mm
