View larger
Images are for illustrative purposes only. Please refer to data sheet for details

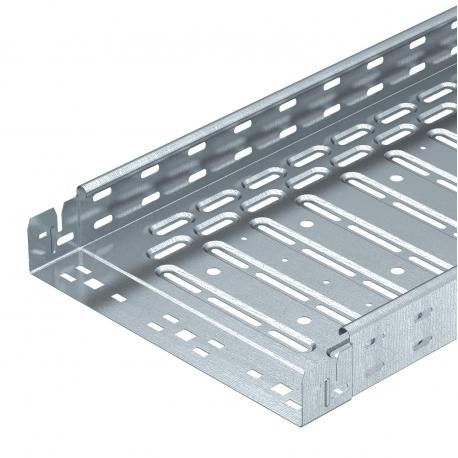

RKSM 650 FT 6047720 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x500x3050, Hot-dip galvanised, ..
RKSM 650 FT
6047720
OBO BETTERMANN
3 m.
Cable tray RKSM Magic, quick connector, 60x500x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
RKSM RKSM 650 FT Magic cable tray, with quick connector 60x500x3050 Steel, St, Hot dip galvanized, DIN EN ISO 1461
Cable tray RKS-Magic® 60 FT. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.The perforation for direct threaded rod suspension has a diameter of 11 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Base perforation | 1.3 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 11,9302 kg CO2e / 1 Meter |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x500x3050 |
| Dimension B | 500 mm |
| Dimension t | 300 mm |
| Dimension x | 400 mm |
| Dimension y | 450 mm |
| Height | 60 mm |
| Height | 2 in |
| Length | 3050 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
|---|---|
| NATO hole pattern | no |
| NEMA load class | 8AA |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 2,1 kN/m |
| Support spacing 1.5 m | 1,35 kN/m |
| Support spacing 2.0 m | 0,9 kN/m |
| Support spacing 2.5 m | 0,6 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 29800 mm² |
| Usable cross-section | 298 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 500 mm |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 500 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3050 mm |
| Working length (EF006318) | 3000 mm |
| Useful cross section (EF005140) | 29800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 5.18 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 2100 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1350 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 900 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 600 |
