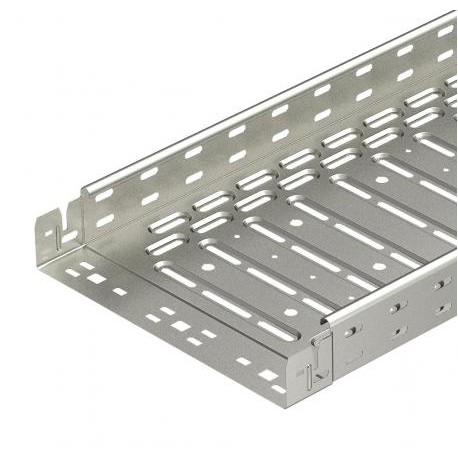

RKSM 640 VA4571 6047692 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x400x3050, Stainless steel,..
RKSM 640 A4
6047692
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Professional cable trays secure and organize electrical wiring installations across industrial plants, safeguarding circuits against physical strain. The Obo Bettermann RKSM 640 A4 is built from high-grade stainless steel to deliver long-term corrosion resistance in harsh operational settings.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Base perforation: 1
- CO2 Footprint (GWP) Cradle-to-Gate: 18,784 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 60x400x3050
- Dimension B: 400 mm
- Dimension t: 200 mm
- Dimension x: 300 mm
- Dimension y: 350 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
More info
▲| Base perforation | 1 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 18,784 kg CO2e / 1 Meter |
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x400x3050 |
| Dimension B | 400 mm |
| Dimension t | 200 mm |
| Dimension x | 300 mm |
| Dimension y | 350 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 0,9 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 2,1 kN/m |
| Support spacing 1.5 m | 1,35 kN/m |
| Support spacing 2.0 m | 0,9 kN/m |
| Support spacing 2.5 m | 0,6 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 23800 mm² |
| Usable cross-section | 238 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
