View larger
Images are for illustrative purposes only. Please refer to data sheet for details

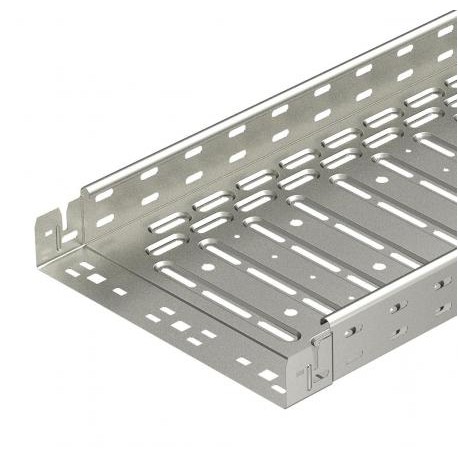

RKSM 640 VA4301 6047691 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x400x3050, Stainless steel,..
RKSM 640 A2
6047691
OBO BETTERMANN
3 m.
Cable tray RKSM Magic, quick connector, 60x400x3050, Stainless steel, grade 304, VA, 1.4301
Cable tray RKS-Magic® 60 A2. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.The perforation for direct threaded rod suspension has a diameter of 11 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Base perforation | 1 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 18,7824 kg CO2e / 1 Meter |
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x400x3050 |
| Dimension B | 400 mm |
| Dimension t | 200 mm |
| Dimension x | 300 mm |
| Dimension y | 350 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 0,9 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 2,1 kN/m |
| Support spacing 1.5 m | 1,35 kN/m |
| Support spacing 2.0 m | 0,9 kN/m |
| Support spacing 2.5 m | 0,6 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 23800 mm² |
| Usable cross-section | 238 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
