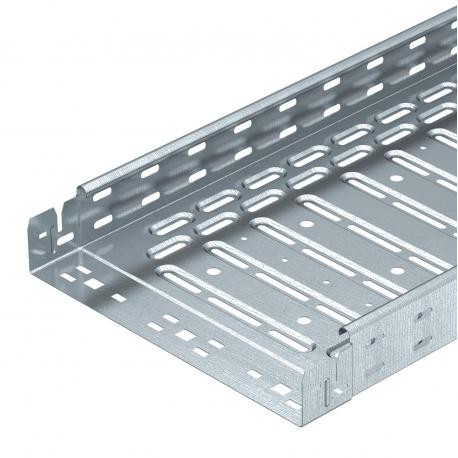

RKSM 640 FT 6047690 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x400x3050, Hot-dip galvanised, ..
RKSM 640 FT
6047690
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Cable tray RKSM Magic, quick connector, 60x400x3050, Hot-dip galvanised, .. supplied by Obo Bettermann is utilized for managing and safeguarding heavy power and control cabling in complex industrial installations. Such containment channels ensure that wire bundles remain supported and organized throughout industrial facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 60 mm
- Width (EF000008): 400 mm
- Material thickness (EF000386): 1 mm
- Length (EF001438): 3050 mm
- Working length (EF006318): 3000 mm
- Useful cross section (EF005140): 23800 mm²
- With cover (EF007965): No
- Side perforation (EF001122): Yes
- Bottom perforation (EF004545): Yes
- NATO-mounting holes (EF006059): No
- Model (EF000010): Integrated coupler
- Type of connector (EF000141): Click in
- Suitable for circuit integrity (EF007806): Yes
- Material (EF002169): Steel
- Surface protection (EF000139): Hot dip galvanized
- Weight (EF000167): 4.37 kg/m
More info
▲| Base perforation | 1.3 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,0819 kg CO2e / 1 Meter |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x400x3050 |
| Dimension B | 400 mm |
| Dimension t | 200 mm |
| Dimension x | 300 mm |
| Dimension y | 350 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 2 in |
| Height | 60 mm |
| Length | 3050 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| NEMA load class | 8AA |
| Plate thickness | 0,04 in |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 2,1 kN/m |
| Support spacing 1.5 m | 1,35 kN/m |
| Support spacing 2.0 m | 0,9 kN/m |
| Support spacing 2.5 m | 0,6 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 238 cm² |
| Usable cross-section | 23800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 16 in |
| Width | 400 mm |
| With cover | no |
