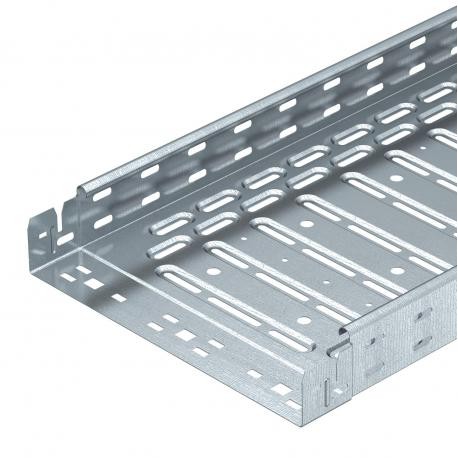

RKSM 640 FS 6047689 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x400x3050, Strip-galvanised, DI..
RKSM 640 FS
6047689
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Cable tray RKSM Magic, quick connector, 60x400x3050, Strip-galvanised, DI.. built by Obo Bettermann is applied in electrical distribution setups to support and guide power and control lines. Metal cable trays ensure structural stability and organization for complex routing paths.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 60 mm
- Width (EF000008): 400 mm
- Material thickness (EF000386): 0.9 mm
- Length (EF001438): 3050 mm
- Working length (EF006318): 3000 mm
- Useful cross section (EF005140): 23800 mm²
- With cover (EF007965): No
- Side perforation (EF001122): Yes
- Bottom perforation (EF004545): Yes
- NATO-mounting holes (EF006059): No
- Model (EF000010): Integrated coupler
- Type of connector (EF000141): Click in
- Suitable for circuit integrity (EF007806): Yes
- Material (EF002169): Steel
- Surface protection (EF000139): Pre-galvanised
- Weight (EF000167): 3.38 kg/m
More info
▲The stock length is 3050 mm, the usable length when combined is 3000 mm.
The spring element FED 60 can be ordered separately as an accessory part (spare) for the cable tray RKS Magic with a side height of 60 mm under the article number 6068859.
The continuous equipotential bonding is guaranteed without additional components.VDE-tested cable tray system. Tested for function maintenance according to DIN 4102 Part 12 (tray widths 100 - 400 mm, mounting with work and parameters according to valid test certificate).
