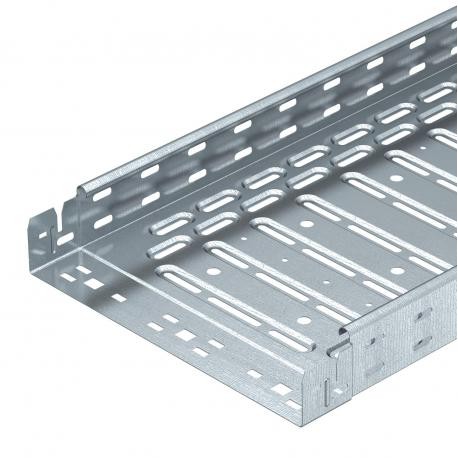

OBO BETTERMANN RKSM 630 FT RKSM 630 FT 6047655 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x300x3050, Hot-dip galvanised, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RKSM 630 FT 6047655 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x300x3050, Hot-dip galvanised, ..

RKSM 630 FT

6047655

OBO BETTERMANN

3 m.

Cable tray RKSM Magic, quick connector, 60x300x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St RKSM RKSM 630 FT Magic cable tray, with quick connector 60x300x3050 Steel, St, Hot dip galvanized, DIN EN ISO 1461 RKS-Magic® 60 FT cable tray. Cable tray with integrated quick fixing system. The usable length of the cable tray is 3,000 mm.La cable tray has a continuous side perforation of 7 x 20 mm for the installation of additional joining and mounting components. The hole for the direct threaded rod suspension has a diameter of 11 mm. Magnetic insulation without cap 20 dB, with cap 50 dB.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Cable tray RKSM Magic, quick connector, 60x300x3050, Hot-dip galvanised, .. built by Obo Bettermann provides secure mechanical containment for electrical wiring and control cables in industrial settings. Metal containment trays maintain organized routing paths across infrastructure layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 60 mm
  • Width (EF000008): 300 mm
  • Material thickness (EF000386): 1 mm
  • Length (EF001438): 3050 mm
  • Working length (EF006318): 3000 mm
  • Useful cross section (EF005140): 17800 mm²
  • With cover (EF007965): No
  • Side perforation (EF001122): Yes
  • Bottom perforation (EF004545): Yes
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Type of connector (EF000141): Click in
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 3.56 kg/m

More info

▲
Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 20 mm, for bracket mounting and, from the width 200 mm, with 7 x 32 mm transverse beading for cable ventilation and simplified mounting. With 11 mm perforation for direct threaded rod suspension. Continuous side perforation, 7 x 20 mm, as connector perforation.
The stock length is 3050 mm, the usable length when combined is 3000 mm.
The spring element FED 60 can be ordered separately as an accessory part (spare) for the cable tray RKS Magic with a side height of 60 mm under the article number 6068859.
The continuous equipotential bonding is guaranteed without additional components.VDE-tested cable tray system. Tested for function maintenance according to DIN 4102 Part 12 (tray widths 100 - 400 mm, mounting with work and parameters according to valid test certificate).
