View larger
Images are for illustrative purposes only. Please refer to data sheet for details

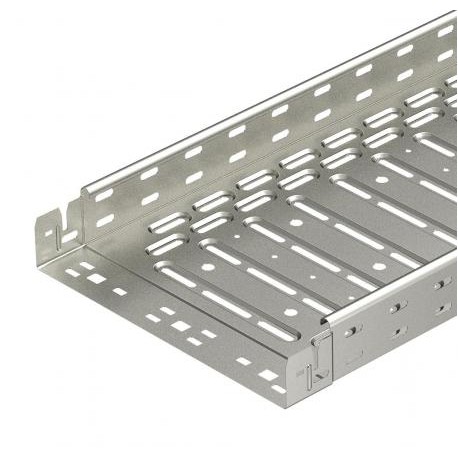

RKSM 620 A2 6047640 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x200x3050, Stainless steel, gra..
RKSM 620 A2
6047640
OBO BETTERMANN
3 m.
Cable tray RKSM Magic, quick connector, 60x200x3050, Stainless steel, grade 304, VA, 1.4301
RKSM RKSM 620 A2,Magic cable tray, with quick connector 60x200x3050 Stainless steel 1.4301, A2, 1.4301,Polished, with subsequent treatment
Cable tray RKS-Magic® 60 A2. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.The perforation for direct threaded rod suspension has a diameter of 11 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Base perforation | 1 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 10,5828 kg CO2e / 1 Meter |
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x200x3050 |
| Dimension B | 200 mm |
| Dimension x | 100 mm |
| Dimension y | 150 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | yes |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 0,75 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 1,2 kN/m |
| Support spacing 1.5 m | 0,9 kN/m |
| Support spacing 2.0 m | 0,6 kN/m |
| Support spacing 2.5 m | 0,4 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 118 cm² |
| Usable cross-section | 11800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 200 mm |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 200 mm |
| Material thickness (EF000386) | 0.75 mm |
| Length (EF001438) | 3050 mm |
| Working length (EF006318) | 3000 mm |
| Useful cross section (EF005140) | 11800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface protection (EF000139) | Untreated |
| Weight (EF000167) | 2.01 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 1200 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 900 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 600 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 400 |
