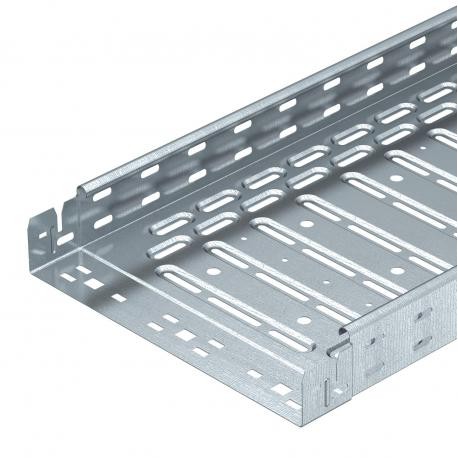

RKSM 615 FS 6047630 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x150x3050, Strip-galvanised, DI..
RKSM 615 FS
6047630
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann RKSM 615 FS cable tray RKSM Magic is a professional routing solution designed to support and protect electrical cables in diverse industrial configurations. Quick-connector cable trays optimize layout efficiency while providing reliable mechanical safeguarding for power distribution lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Base perforation: 1
- CO2 Footprint (GWP) Cradle-to-Gate: 3,8283 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x150x3050
- Dimension B: 150 mm
- Dimension x: 50 mm
- Dimension y: 100 mm
- Height: 2 in
- Height: 60 mm
- Length: 3050 mm
- Length: 10 ft
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: yes
More info
▲| Base perforation | 1 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8283 kg CO2e / 1 Meter |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x150x3050 |
| Dimension B | 150 mm |
| Dimension x | 50 mm |
| Dimension y | 100 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure, Use of fire protection ceilings |
| Height | 2 in |
| Height | 60 mm |
| Length | 3050 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| NEMA load class | 8AA |
| Plate thickness | 0,75 mm |
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 1,2 kN/m |
| Support spacing 1.5 m | 1 kN/m |
| Support spacing 2.0 m | 0,6 kN/m |
| Support spacing 2.5 m | 0,4 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 8800 mm² |
| Usable cross-section | 88 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 6 in |
| Width | 150 mm |
| With cover | no |
