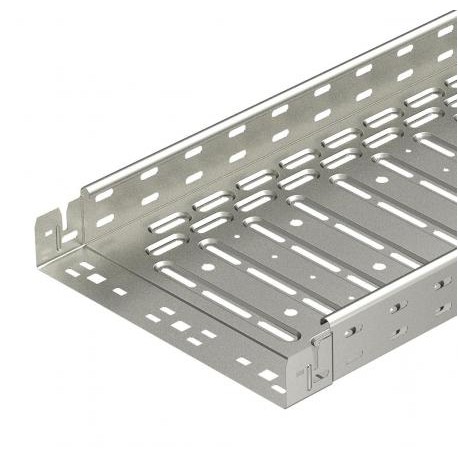

RKSM 610 VA4571 6047614 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x100x3050, Stainless steel,..
RKSM 610 A4
6047614
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for durable stainless steel routing applications, this Obo Bettermann RKSM 610 A4 cable tray maintains orderly wire pathways across complex industrial environments. Cable trays protect electrical bundles from strain and environmental hazards in wall and ceiling installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Base perforation: 1
- CO2 Footprint (GWP) Cradle-to-Gate: 7,5251 kg CO2e / 1 Meter
- Colour: stainless steel
- Connector version: Integrated connector
- Dimension: 60x100x3050
- Dimension B: 100 mm
- Dimension y: 50 mm
- Fire protection: Maintenance of electrical function of cable-specific support structure
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: yes
- Material: Stainless steel 1.4571
- Mounting perforation in base: yes
More info
▲| Base perforation | 1 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 7,5251 kg CO2e / 1 Meter |
| Colour | stainless steel |
| Connector version | Integrated connector |
| Dimension | 60x100x3050 |
| Dimension B | 100 mm |
| Dimension y | 50 mm |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | yes |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 0,75 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 1,2 kN/m |
| Support spacing 1.5 m | 0,9 kN/m |
| Support spacing 2.0 m | 0,6 kN/m |
| Support spacing 2.5 m | 0,4 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 5800 mm² |
| Usable cross-section | 58 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
