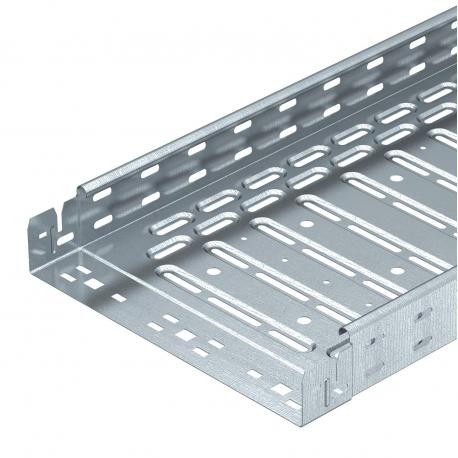

OBO BETTERMANN RKSM 610 FS RKSM 610 FS 6047611 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x100x3050, Strip-galvanised, DI.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RKSM 610 FS 6047611 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 60x100x3050, Strip-galvanised, DI..

RKSM 610 FS

6047611

OBO BETTERMANN

3 m.

Cable tray RKSM Magic, quick connector, 60x100x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray RKS-Magic® 60 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.The perforation for direct threaded rod suspension has a diameter of 11 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann Magic cable tray (part number RKSM 610 FS) functions as a streamlined routing system designed to support and organize medium-duty electrical cable bundles in industrial plants. The integrated quick-fastening connector reduces assembly labor.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Base perforation: 1
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,1844 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x100x3050
  • Dimension B: 100 mm
  • Dimension y: 50 mm
  • Height: 2 in
  • Height: 60 mm
  • Length: 3050 mm
  • Length: 10 ft
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: yes
  • Material: Steel

More info

▲
Base perforation1
CO2 Footprint (GWP) Cradle-to-Gate3,1844 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x100x3050
Dimension B100 mm
Dimension y50 mm
Fire protectionMaintenance of electrical function of cable-specific support structure, Use of fire protection ceilings
Height2 in
Height60 mm
Length3050 mm
Length10 ft
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsyes
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
NEMA load class8AA
Plate thickness0,75 mm
Plate thickness0,03 in
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.0 m1,2 kN/m
Support spacing 1.5 m0,9 kN/m
Support spacing 2.0 m0,6 kN/m
Support spacing 2.5 m0,4 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section5800 mm²
Usable cross-section58 cm²
Usable length3000 mm
Wide-span versionno
Width4 in
Width100 mm
With coverno
