View larger
Images are for illustrative purposes only. Please refer to data sheet for details

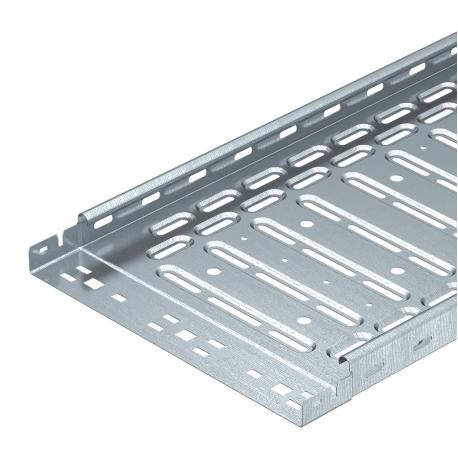

RKSM 320 FS 6047433 OBO BETTERMANN Cable tray RKSM Magic, quick connector, 35x200x3050, Strip-galvanised, DI..
RKSM 320 FS
6047433
OBO BETTERMANN
3 m.
Cable tray RKSM Magic, quick connector, 35x200x3050, Strip-galvanised, DIN EN 10147, Steel, St
Cable tray RKS-Magic® 35 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.The perforation for direct threaded rod suspension has a diameter of 11 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Base perforation | 1 |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8239 kg CO2e / 1 Meter |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 35x200x3050 |
| Dimension B | 200 mm |
| Dimension x | 100 mm |
| Dimension y | 150 mm |
| Height | 35 mm |
| Height | 1 in |
| Length | 10 ft |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 0,03 in |
|---|---|
| Plate thickness | 0,75 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.0 m | 1,1 kN/m |
| Support spacing 1.5 m | 0,5 kN/m |
| Support spacing 2.0 m | 0,3 kN/m |
| Support spacing 2.5 m | 0,15 kN/m |
| Support spacing 3.0 m | 0,1 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 6800 mm² |
| Usable cross-section | 68 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 6 in |
| Width | 200 mm |
| With cover | no |
